Kubernetes, also known as K8s, is an open source system for automating deployment, scaling, and management of containerized applications.
Prerequisite: Docker | Docker Compose
This note is a cohesive walkthrough based on the crash course I watched (YouTube video), the hands-on custom project (prasanth-ntu/k8s-crash-course), and the corresponding docker image for webapp (nanajanashia/k8s-demo-app:v1.0 from Docker Hub.
Kubernetes Architecture: End-to-End
Open in new tab (*Note: Best viewed in desktop or landscape view*) # Part 1: Introduction to Kubernetes ## What is Kubernetes? - Open source (docker) container **orchestration tool** - Developed by Google - Helps manage (1000s of) containerized applications in **different deployment environments**What problems does K8s solve?
- Increasing trend from Monolithic to Microservices
- Increased use of container technology
- As containers offer perfect host for small independent applications like microservices
- Demand for proper way of managing those 100s of containers
What are the tasks/features of an orchestration tool
- High Availability or no downtime
- Scalability or high performance
- Disaster recovery (Self Healing) - backup and restore
Kubernetes Architecture
Node = Virtual or Physical Machine
Worker Nodes = Often referred to as "Nodes"
kubelet = primary "node agent"
A k8s process that makes it possible for cluster to talk to each other, and execute some tasks on the nodes (e.g., run application process)

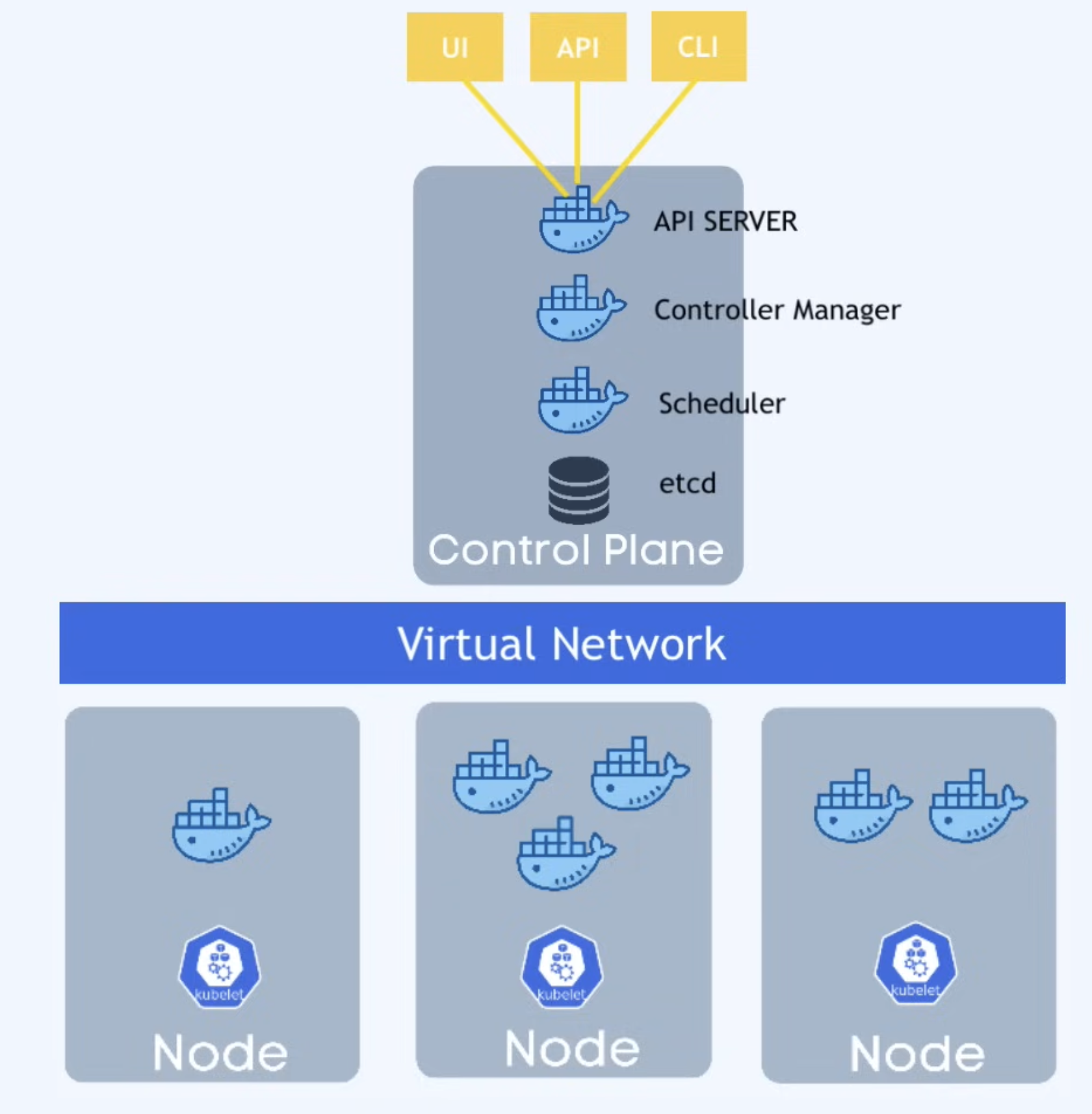

K8s architecture is made up of
- At least 1 Master Node
- Master node runs several k8s processes necessary to run and manage cluster properly.
- Much more important than individual worker nodes.
- Since we need to have backup of master at any given time, especially in prd environment, we will at least have 2 Master Nodes.
- Processes running in master include
- API Server = Entry point to K8s cluster
- Also a container
- This is the process different K8s clients (like UI, API, CLI) will talk to
- Controller Manager = Keeps track of what’s happening in the cluster
- ==Scheduler== = Ensures Pods placement
- Intelligent process that decides on which Worker Node new Pod should be placed/scheduled based on available resources on the worker node, and the load that container needs.
- ****etcd = K8s backing store
- At any time, stores the current state of any K8s components in the cluster (i.e., etcd snapshots)
- API Server = Entry point to K8s cluster
- Worker Nodes connected to it
- Each node has a kubelet process running
- Each worker node has containers of different applications deployed on it
- Depending on the config, different number of docker containers can be running in each node.
- Worker node is where our applications are running (i.e., actual work is happening) and has the most load. So, they are much bigger and has more resources.
- Virtual Network = Creates one unified machine

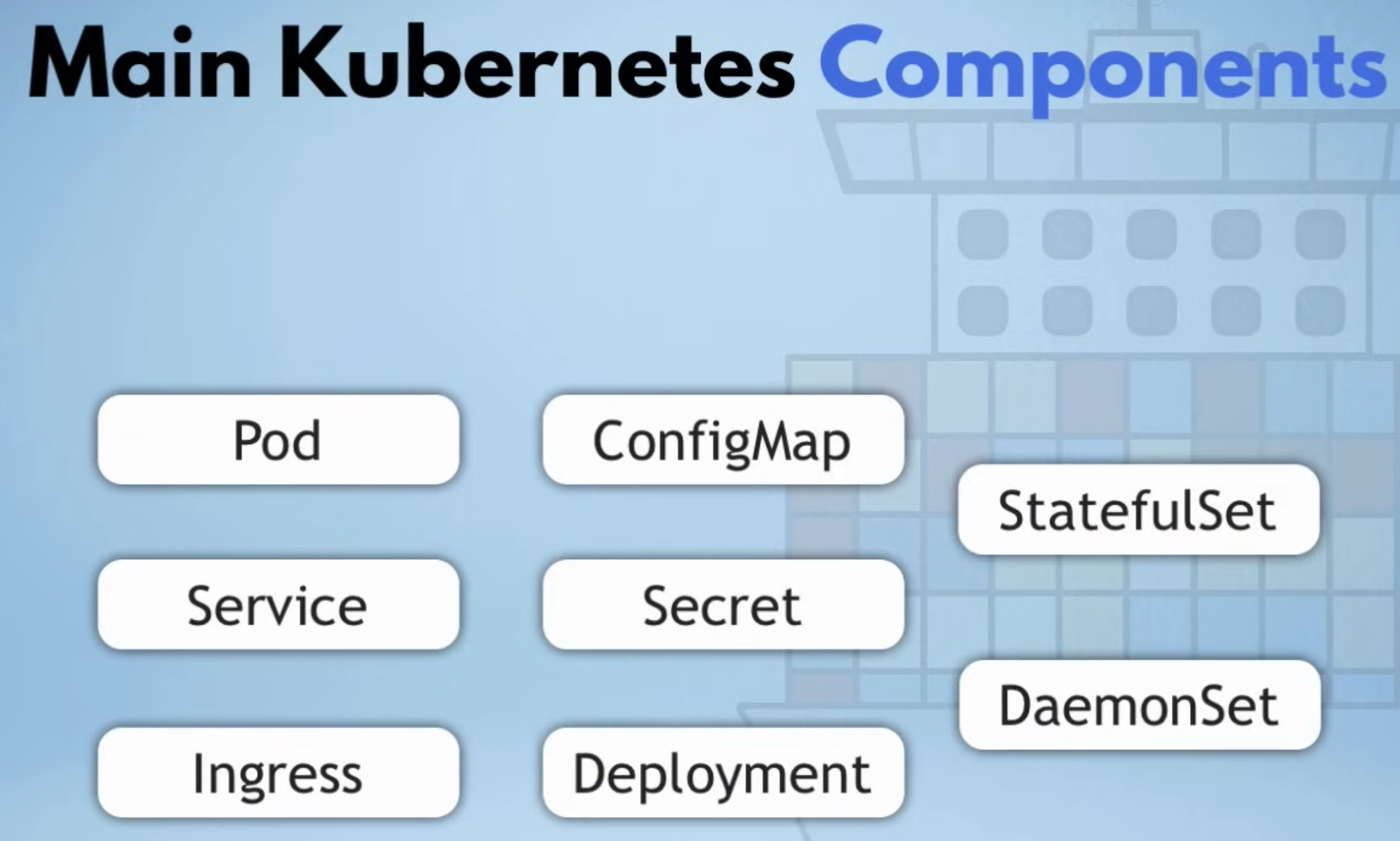

Part 2: Main Kubernetes Components
Node
Node = Virtual or Physical Machine
Pod
- Smallest unit unit in K8s
- Abstraction over Docker Container
- So, we only interact with K8s layer
- Usually 1 Application per Pod
- e.g., 1 server Node with 2 containers running
- Our custom JS app running in 1 Pod
- MongoDB Pod running in 1 Pod
- e.g., 1 server Node with 2 containers running
- Each Pod (not the container) gets its own IP address
- Using this internal IP address, they can communicate with each other
- New IP address on recreation
- ⚠️ Pod is Ephemeral
In other words, Pod is like a layer over the Docker Container, so that we don’t have to work directly with Docker technology.
Service
- Permanent IP address
- Attached to each Pod
- Lifecycle of Pod and Service are not connected
- IP address will stay even if Pod dies
- We specify the type of Service on creation
- Internal Service is the default type
- The Service is also a load balancer
Ingress
- The (external) request goes to Ingress (e.g., https://my-app.com from user browser), which then forwards the request to the Service
ConfigMap
- External Configuration of our application
- Contains configuration data like
- URLs of database (e.g.,
DB_URL = mongo-db) - Other services
- URLs of database (e.g.,
- ⚠️ ConfigMap is for non-confidential data only
- Reference ConfigMap in Deployment/Pod
- Use it as environment variables or as a properties file
Secret
- Just like ConfigMap, but used store secret data (such as credentials)
- Data is not stored as plain text, but as base64 encoded format
- Reference Secret in Deployment/Pod
- Use it as environment variables or as a properties file
Volume
K8s does not manage data persistence!
Think of Storage as external HD plugged into the K8s cluster.
- Data Storage (DB): If we have only 1 DB container or pod and if it gets restarted, the data would be gone, which is problematic as DB data should be persisted long term
- To address this issue, we can use the Volumes
- It attaches physical storage on a hard drive to our pod
- The storage could be
- Local machine or
- Remote/Cloud storage, outside of K8s cluster (with external reference)
Deployment
- Distributed System: Replicate everything on multiple servers
- Instead of relying on 1 application pod and 1 DB pod
- The replica is connected to the same Service (Yay!)
- So, if one application Pod dies, the Service will redirect the request to another application Pod
- Blueprint/Template for creating Pods (e.g., for
my-app)- Specify how many replicas we want
- In practice, we create Deployments (not Pods)
- Abstraction of Pods
- For StateLESS Apps
- ❌ DB cannot be replicated via Deployment as DBs have state
StatefulSet
- For STATEFUL apps or DBs
- e.g., MySQL, MongoDB, Elastic
- Deploying StatefulSet is not easy
- DBs are often hosted outside K8s cluster.
DeamonSet
…
Summary of K8s Components
- Pod: Abstraction of containers
- Service: Communication between Pods
- Ingress: Router traffic into cluster
- ConfigMap: External configuration
- Secrets: External configuration
- Volume: Data Persistence
- Deployment: Replication for StateLESS apps
- StatefulSeet: Replication for StateFul apps or DBs
How to create the resources & configure the K8s cluster?
- All configs goes through Master Node through process called API Server, which is the main and only entry point to the cluster
- The request has to be in YAML/JSON format
- K8s client could be
- UI
- API
- Script
- Curl command
- kubectl - K8s CLI
K8s Configuration
- Declarative
- Is == Should
- Controller Manager checks:
desired state == actual state ?
- Controller Manager checks:
3 Parts of K8s Configuration File
- Metadata (
metadata) - Specification (
spec)- Attributes will be specific to the
kind
- Attributes will be specific to the
- Status (
status)- Automatically generated, added and updated continuously by K8s.
- Where does K8s gets the status data?
- From
etcdBesides that, we also have API version and service kind.
- From
Part 3: Local Setup: Minikube and kubectl
What is minikube?

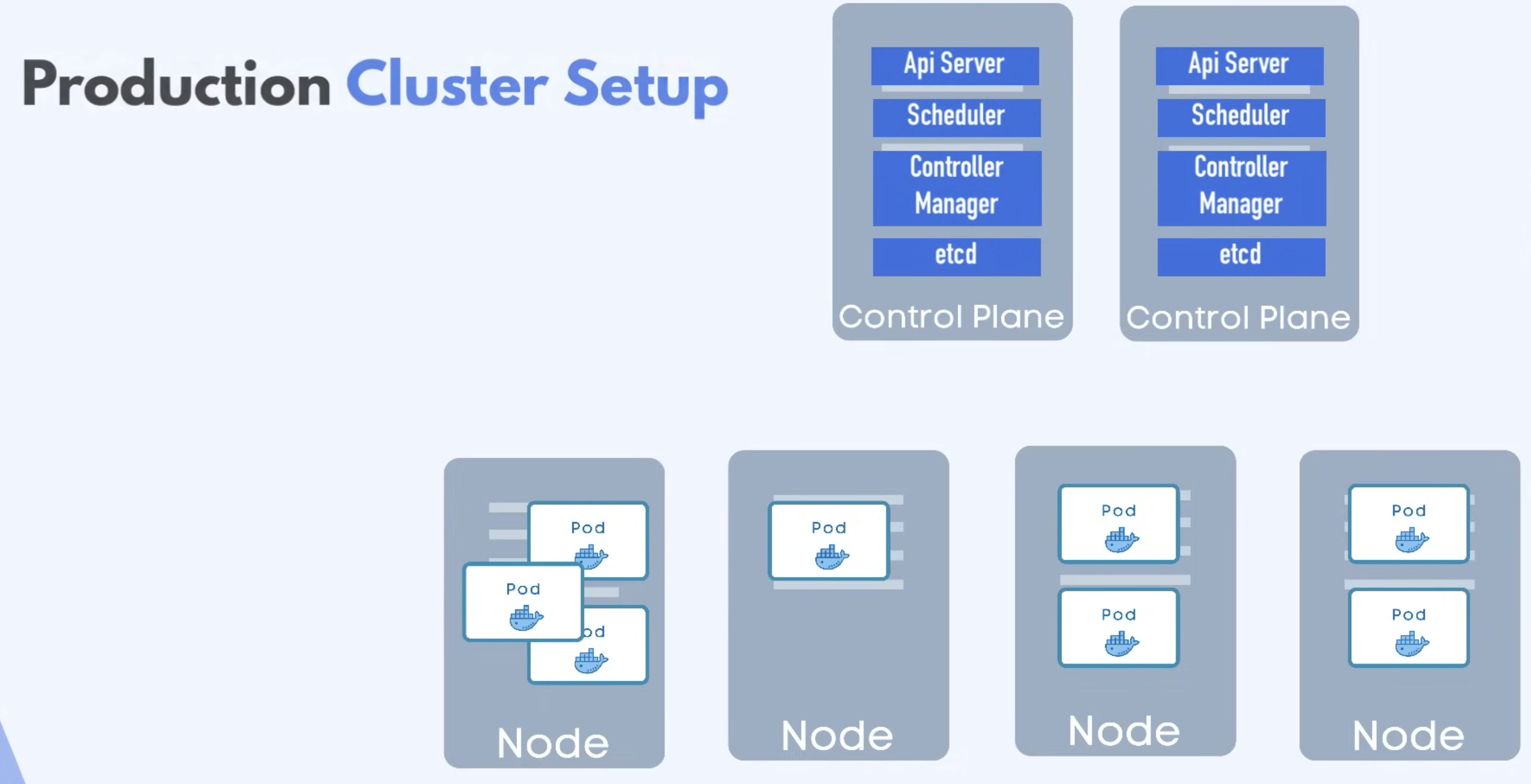

Production Cluster Setup
- Multiple Master Nodes and Worker Nodes
- Separate virtual or physical machines each representing a Node
🤔 Test on Local Machine?
- We may not have enough resources locally to test this entire cluster

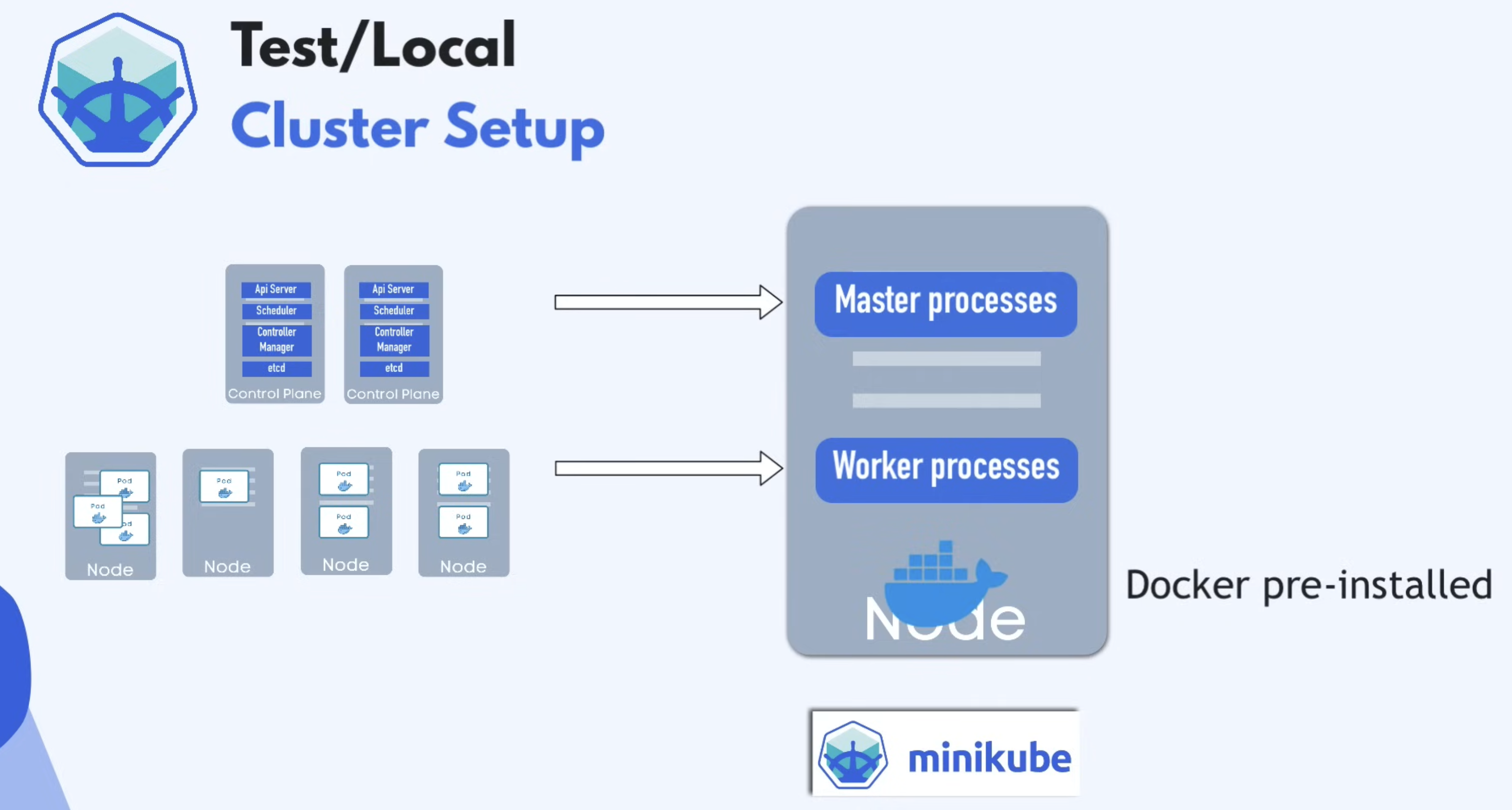

Minikube
- Both Master Nodes and Worker Nodes processes run on ONE machine
- Comes Docker Container runtime pre-installed, where we can run the pods with containers in the (virtual) Node.
- Minikube has kubectl as dependency
What is kubectl?
- CLI for K8s cluster
- Helps to interact with various K8s clusters (like Minikube cluster, Cloud cluster, etc.)
- As we know, the API server in Master Processes is the main entry point into the K8s cluster
- We can talk to the API server via 3 different clients (CLI, UI, API) where
- 💪
kubectlis the most powerful of 3 clients
- 💪
- We can talk to the API server via 3 different clients (CLI, UI, API) where
Set-up Minikube cluster
Installation
- For installation details, refer Official Doc.
Start our Minikube cluster
- We need either a container runtime or VM manager on our laptop to run minikube
- This will be the driver for our minikube
- Refer Official Doc for Drivers supported.
Docker is one of the preferred driver for running minikube on all OS
2 Layers of Docker
- Minikube running as Docker container
- Docker inside Minikube to run our application container
$ minikube start --driver docker$ minikube status
minikube
type: Control Plane
host: Running
kubelet: Running
apiserver: Running
kubeconfig: Configured# Display all the nodes in the Cluster
kubectl get node
NAME STATUS ROLES AGE VERSION
minikube Ready control-plane 73m v1.34.0Now, we have actual K8s cluster running locally in our machine. We can start deploying applications in it.
Part 4: Complete Demo Project
Demo Project Overview

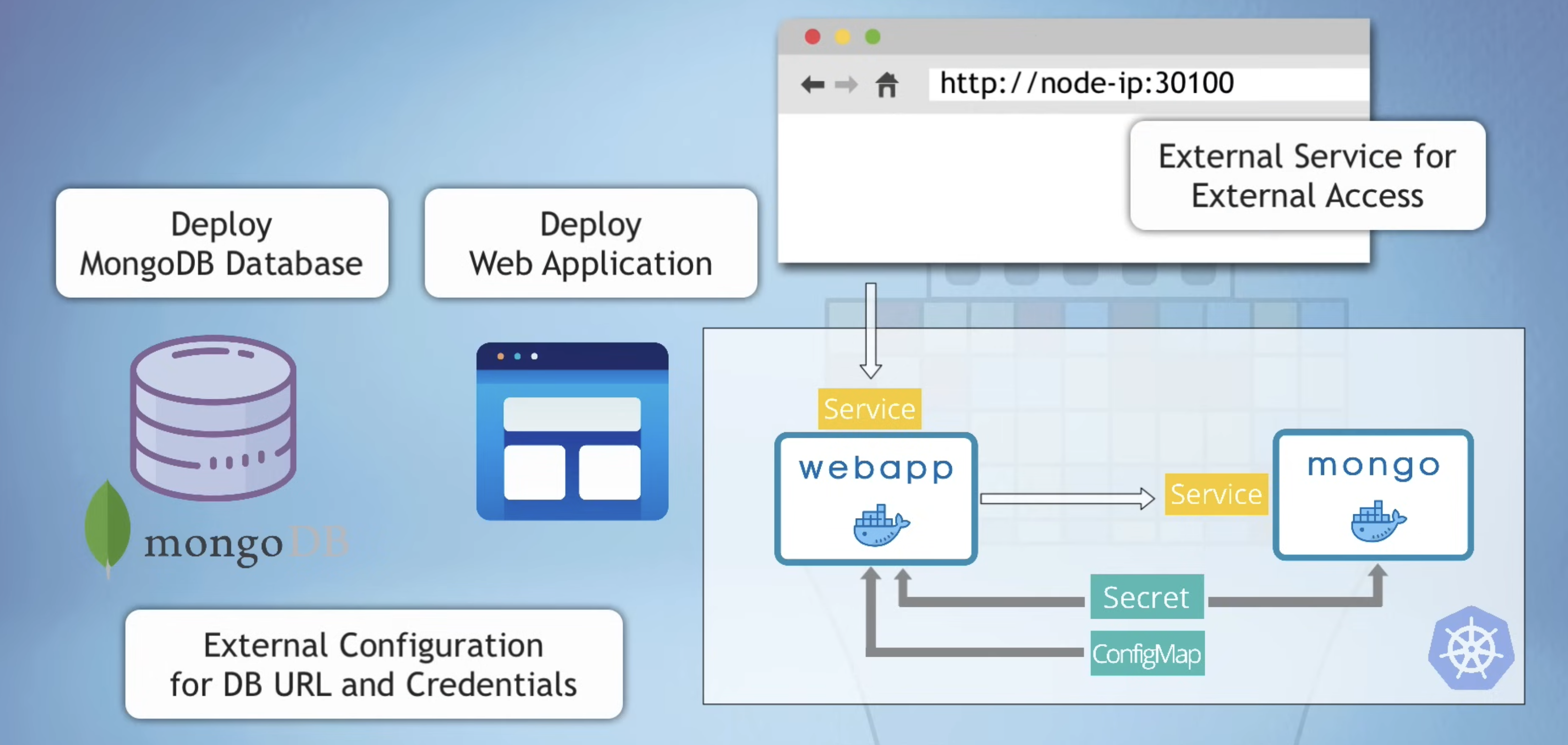

We will deploy a mongoDB and web application. The web application will connect to mongoDB via external configuration data (ConfigMap and Secret) Finally, we will make web application accessible externally from browser.
Key resources
- K8s documentation
- nanajanashia/k8s-demo-app image from DockerHub

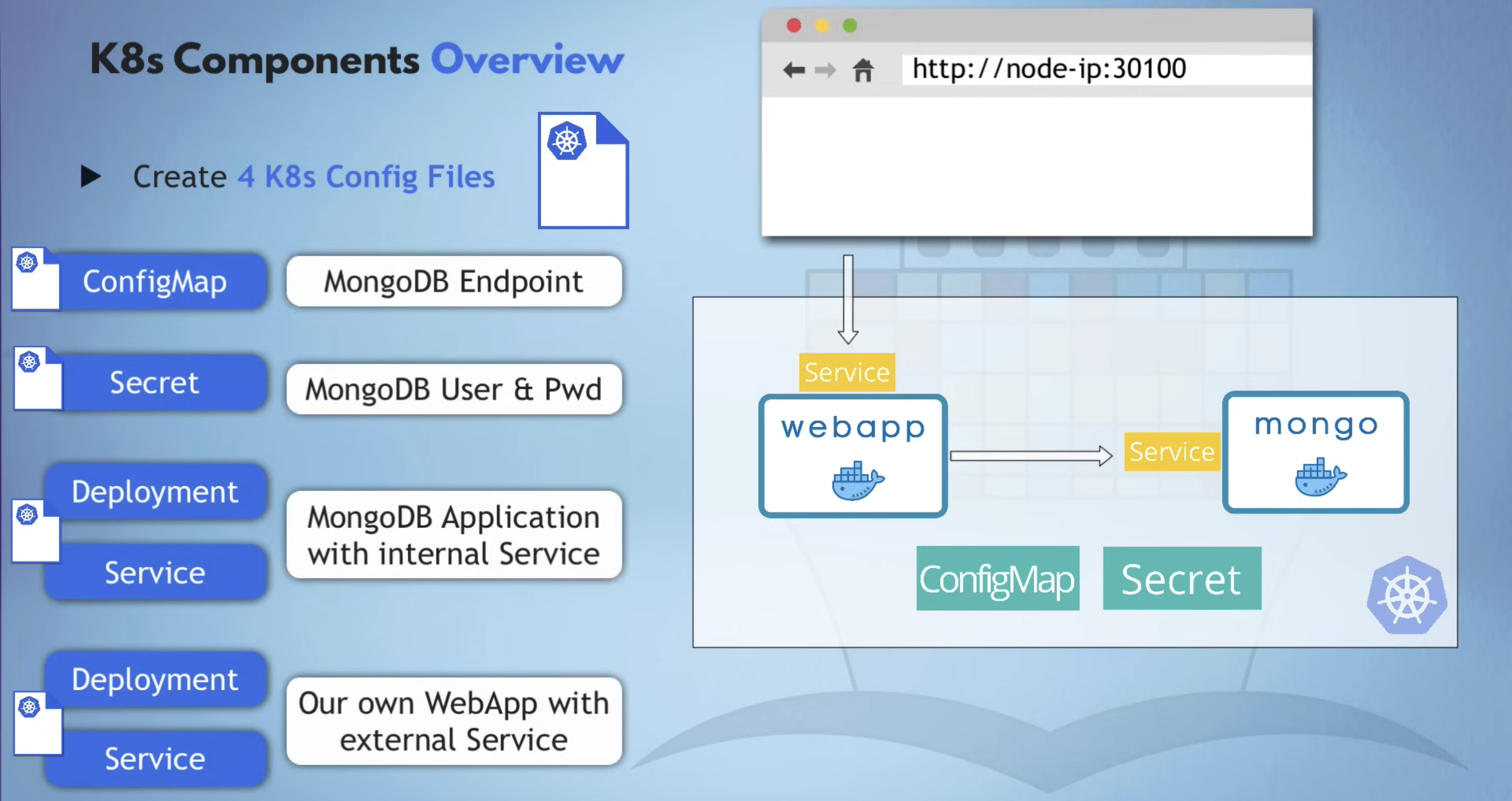

K8s Components Overview
Let’s create all 4 K8s configuration files needed for deploying our application setup.
1. mongo-config.yaml
Copy the template from official doc > configmap, and update it.
2. mongo-secret.yaml
Copy the template from official doc > secret, and update it.
# Values in secrets are Base64 encoded. So, we cannot store them in plain text. So, we need to use Base64 form.
$ echo -n mongouser | base64
bW9uZ291c2Vy
$ echo -n mongopassword | base64
bW9uZ29wYXNzd29yZA==
Secretfile should not be synced in Git repo.
These external configurations (ConfigMap and Secret) can now be references by different Deployments.
3. mongo.yaml
1 unified file Config file for deployment and service for MongoDB.
Deployments
Copy the template from official doc > deployments, and update it.
Label
- We can give any K8s component a label
- Labels are key/value pairs that are attached to k8s resources
- Additional Identifiers of the components in addition to the name
- Examples
"release": "stable"vs."release": "canary""env": "dev"vs."env": "prd""tier": "frontend"vs."tier": "backend"
- Why do we need them?
- Unlike names, Labels do not provide uniqueness.
- e.g., All Pod replicas will have the same label
- Unlike names, Labels do not provide uniqueness.
| Unique name | mongo-101 | mongo-111 | mongo-210 |
|---|---|---|---|
| Common Label | app:nginx | app:nginx | app:nginx |
Label Selectors
- How does K8s know which Pods belong to Deployments?
- Identify a set of resources
- e.g., Match all Pods with label “app:nginx”
Service
Copy the template from official doc > service, and update it.
4. webapp.yaml - WebApp Deployment & Service
Copy the contents of mongo.yaml and update as per needed, especially the name, image, labels, port, etc.
5. Pass ConfigMap & Secret Data to Mongo & WebApp Pods Deployment
mongo.yaml
We need to set: Username and Password when the DB starts
- Environment variables:
-
MONGO_INITDB_ROOT_USERNAME- `MONGO_INITDB_ROOT_PASSWORD
How do we pass these environment variables to mongo application running inside the container?
- We can use
envwithnameandvaluein the.yamlfile.- [!WARNING] However, we should Reference
Secretdata here instead of hardcode sensitive data.
- Example:
env:
- name: MONGO_INITDB_ROOT_USERNAME
# value: secretValue # Reference Secret data here instead of hardcode sensitive data.
valueFrom:
secretKeyRef:
name: mongo-secret # Name of the Secret resource that holds the username.
key: mongo-userwebapp.yaml
When our webapp starts, it will need to connect to MongoDB. So, we need to give info about DB Endpoint and other details.
How do we pass the DB endpoint, username, and password to webapp?
- DB Endpoint (
DB_URL) - Ref fromConfigMap- DB Username (
USER_NAME) - Ref fromSecret- DB Password (
USER_PWD) - Ref fromSecret
FYI, the webapp is already configued to take in the above values as environment variables
6. Configure External Service
webapp.yaml
To make the webapp accessible from outside (e.g., browser), we need to make it as an External Service by setting Service
type: Service type- Options:
ClusterIP(Default, an Internal Service) orNodePort(External Service)
- Options:
NodePort: exposes the Service on each Node’s IP at a static port- Must be between 30000 - 32767
7. Final Step
We will create the above Services/Pods one by one in K8s.
Minikube is running, but no components deployed yet.
$ minikube status
minikube
type: Control Plane
host: Running
kubelet: Running
apiserver: Running
kubeconfig: Configured
$ kubectel get pods
No resources found in default namespace.
ConfigMapandSecretmust exist before Deployments.
Start the (Pod) services
$ kubectl get pods
No resources found in default namespace.
$ kubectl apply -f mongo-config.yaml
configmap/mongo-config created
$ kubectl apply -f mongo-secret.yaml
secret/mongo-secret created
$ kubectl apply -f mongo.yaml
deployment.apps/mongo-deployment created
service/mongo-service created
$ k8s-demo kubectl apply -f webapp.yml
deployment.apps/webapp-deployment created
service/webapp-service created
$ kubectl get pods
NAME READY STATUS RESTARTS AGE
mongo-deployment-5585b4c49c-fzxzz 0/1 ContainerCreating 0 8s
webapp-deployment-67c784bbc6-t955s 0/1 ContainerCreating 0 1sInteracting with K8s cluster
# Gives all the components created in the K8s cluter, including
# Pods
# Services
# Deployment
$ kubectl get all
NAME READY STATUS RESTARTS AGE
pod/mongo-deployment-5585b4c49c-fzxzz 1/1 Running 0 2m18s
pod/webapp-deployment-67c784bbc6-t955s 1/1 Running 0 2m11s
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
service/kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 7h22m
service/mongo-service ClusterIP 10.111.229.76 <none> 27017/TCP 2m18s
service/webapp-service NodePort 10.107.206.166 <none> 3000:30100/TCP 2m11s
NAME READY UP-TO-DATE AVAILABLE AGE
deployment.apps/mongo-deployment 1/1 1 1 2m18s
deployment.apps/webapp-deployment 1/1 1 1 2m11s
NAME DESIRED CURRENT READY AGE
replicaset.apps/mongo-deployment-5585b4c49c 1 1 1 2m18s
replicaset.apps/webapp-deployment-67c784bbc6 1 1 1 2m11s$ kubectl get configmaps
NAME DATA AGE
kube-root-ca.crt 1 7h24m
mongo-config 1 4m49s
$ kubectl get secrets
NAME TYPE DATA AGE
mongo-secret Opaque 2 4m41s# Get more detailed output about specific component like Pod or Service
$ kubectl describe service webapp-service
Name: webapp-service
Namespace: default
Labels: <none>
Annotations: <none>
Selector: app=webapp
Type: NodePort
IP Family Policy: SingleStack
IP Families: IPv4
IP: 10.107.206.166
IPs: 10.107.206.166
Port: <unset> 3000/TCP
TargetPort: 3000/TCP
NodePort: <unset> 30100/TCP
Endpoints: 10.244.0.4:3000
Session Affinity: None
External Traffic Policy: Cluster
Internal Traffic Policy: Cluste
# Gets details of the pod including status, config, etc.
$ kubectl describe pod webapp-deployment
Name: webapp-deployment-67c784bbc6-t955s
Namespace: default
Priority: 0
Service Account: default
Node: minikube/192.168.49.2
... # Get logs
$ kubectl logs webapp-deployment-67c784bbc6-t955s
app listening on port 3000!
# Stream the logs
$ kubectl logs webapp-deployment-67c784bbc6-t955s -f
app listening on port 3000!Validate that app is accessible from Browser
$ kubectl get service
NAME TYPE CLUSTER-IP EXTERNAL-IP PORT(S) AGE
kubernetes ClusterIP 10.96.0.1 <none> 443/TCP 7h32m
mongo-service ClusterIP 10.111.229.76 <none> 27017/TCP 12m
webapp-service NodePort 10.107.206.166 <none> 3000:30100/TCP 11mWhich IP address should we access?
NodePort Service is accessible on IP address of Cluster Nodes (all the Worker Node’s the Cluster has).
Since we only have 1 which is the minikube, let’s get that
$ minikube ip
192.168.49.2
$ kubectl get node
NAME STATUS ROLES AGE VERSION
minikube Ready control-plane 7h34m v1.34.0
$ kubectl get node -o wide
NAME STATUS ROLES AGE VERSION INTERNAL-IP EXTERNAL-IP OS-IMAGE KERNEL-VERSION CONTAINER-RUNTIME
minikube Ready control-plane 7h34m v1.34.0 192.168.49.2 <none> Ubuntu 22.04.5 LTS 6.12.54-linuxkit docker://28.4.0As mentioned in the Youtube guide, the http://192.168.49.2 did not work. Instead, these two alternative options worked.
# Option 1a:
$ minikube service webapp-service
┌───────────┬────────────────┬─────────────┬───────────────────────────┐
│ NAMESPACE │ NAME │ TARGET PORT │ URL │
├───────────┼────────────────┼─────────────┼───────────────────────────┤
│ default │ webapp-service │ 3000 │ http://192.168.49.2:30100 │
└───────────┴────────────────┴─────────────┴───────────────────────────┘
🏃 Starting tunnel for service webapp-service./┌───────────┬────────────────┬─────────────┬────────────────────────┐
│ NAMESPACE │ NAME │ TARGET PORT │ URL │
├───────────┼────────────────┼─────────────┼────────────────────────┤
│ default │ webapp-service │ │ http://127.0.0.1:57630 │
└───────────┴────────────────┴─────────────┴────────────────────────┘
🏃 Starting tunnel for service webapp-service.
🎉 Opening service default/webapp-service in default browser...
❗ Because you are using a Docker driver on darwin, the terminal needs to be open to run it.
# Option 1b:
$ minikube service webapp-service --url
http://127.0.0.1:53087
❗ Because you are using a Docker driver on darwin, the terminal needs to be open to run it
# Option 2:
$ kubectl port-forward svc/webapp-service 3000:3000
Forwarding from 127.0.0.1:3000 -> 3000
Forwarding from [::1]:3000 -> 3000
Handling connection for 3000
Handling connection for 3000
Handling connection for 3000
Handling connection for 3000
Handling connection for 3000
Handling connection for 300Why minikube ip:30100 failed earlier?
- With Minikube docker driver on macOS, the “node IP” (
minikube ip, e.g.192.168.x.x) is often on an internal network your host can’t route to directly, soNodePorton that IP can time out even though the Service and Pods are healthy.
Option 1: minikube service webapp-service --url
- What it does: Asks Minikube to expose the Kubernetes Service to your host and prints a reachable URL (often
http://127.0.0.1:<random-port>on macOS with thedockerdriver). - Why it worked: Your host can always reach
127.0.0.1, and Minikube sets up the needed forwarding/tunnel so traffic reacheswebapp-serviceinside the cluster. - When to use: Quick “give me a URL I can open in the browser” for a Service.
Option 2: kubectl port-forward svc/webapp-service 3000:3000
- What it does: Creates a local tunnel from your machine
localhost:3000→ the Servicewebapp-service:3000inside the cluster (through the Kubernetes API connection). - Key detail: This does not require
NodePortorminikube ipto be reachable; it works as long askubectlcan talk to the cluster. - When to use: Reliable debugging, a stable local port, or when NodePort/VM IP routing isn’t reachable from your host.
